Product Category

Aluminium Welding Cable

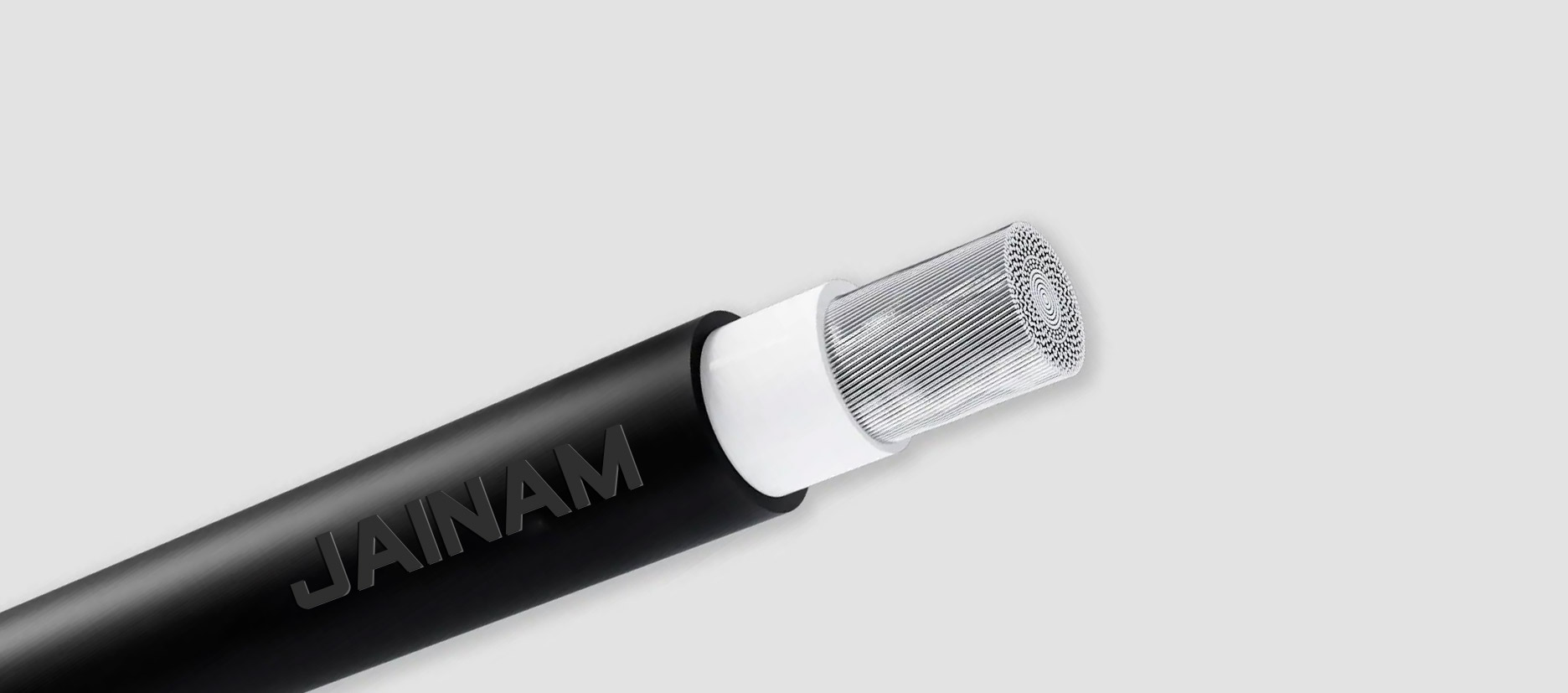

Aluminium Welding Cable

Jainam Aluminium Welding Cables are engineered to deliver high current-carrying capacity, excellent flexibility, and superior durability for demanding welding environments. Designed in compliance with IS 9857:1990, these cables are ideal for applications where weight reduction, cost efficiency, and reliable performance are critical.Manufactured using high-purity aluminium conductors and insulated with NBR (Nitrile Butadiene Rubber), these cables ensure long service life even under severe mechanical stress, heat, oil, grease, abrasion, and harsh industrial conditions.

Construction

  • Conductor: Class 5 / Class 6 stranded high-purity aluminium
  • Insulation: NBR Rubber (Inner & Outer Sheath)
  • Voltage Grade: Up to 1100 V
  • Standard Compliance: IS 9857 : 1990
  • Operating Temperature: Up to 85°C (continuous)
  • Color: Black (other colors available on request)

Application

Jainam Aluminium Welding Cables are widely used in:

  • Arc welding machines
  • Electric welding equipment
  • Industrial fabrication units
  • Shipyards and offshore platforms
  • Steel plants and foundries
  • Heavy engineering workshops
  • Portable and stationary welding machines

These cables are especially suitable where long cable lengths and weight reduction are required without compromising safety.

Special Features

High-Conductivity Aluminium Conductor for efficient current transmission

Double Insulated with NBR Rubber for enhanced safety and durability
Extra Flexible Construction for easy handling and installation
Oil, Heat, Flame & Abrasion Resistant
Lightweight Alternative to Copper Welding Cables
Excellent Performance at High Duty Cycles
Suitable for Use Up to 1100 Volts

Advantages of Aluminium Welding Cables

  • Lower cost compared to copper cables
  • Reduced overall system weight
  • Easy transportation and handling
  • Reliable electrical performance
  • High resistance to mechanical wear

Why Choose Jainam Aluminium Welding Cables?

With decades of expertise in cable manufacturing, Jainam ensures consistent quality, strict testing, and dependable performance. Every cable is manufactured under stringent quality control to meet international and Indian standards, making it a trusted choice for industrial professionals.

TECHNICAL INFORMATION

SIZE IN SQ. MMWelding Application Current Rating (Amps) @ Duty CycleNon-Welding Application (Amps)
 100%85%60%30%
1C X 25*144156186263150
1C X 35*176191227321185
1C X 50*222241287405233
1C X 70280304361511294
1C X 95339368438619355
1C X 120*404438522738775
Note

The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360

In view of continuous improvements in our design and process, specifications given here in are subject change without notice.

  • All are flexible Conductor
  • Insulation Material is NBR
