H05V-U, H07V-U


H05V-U, H07V-U

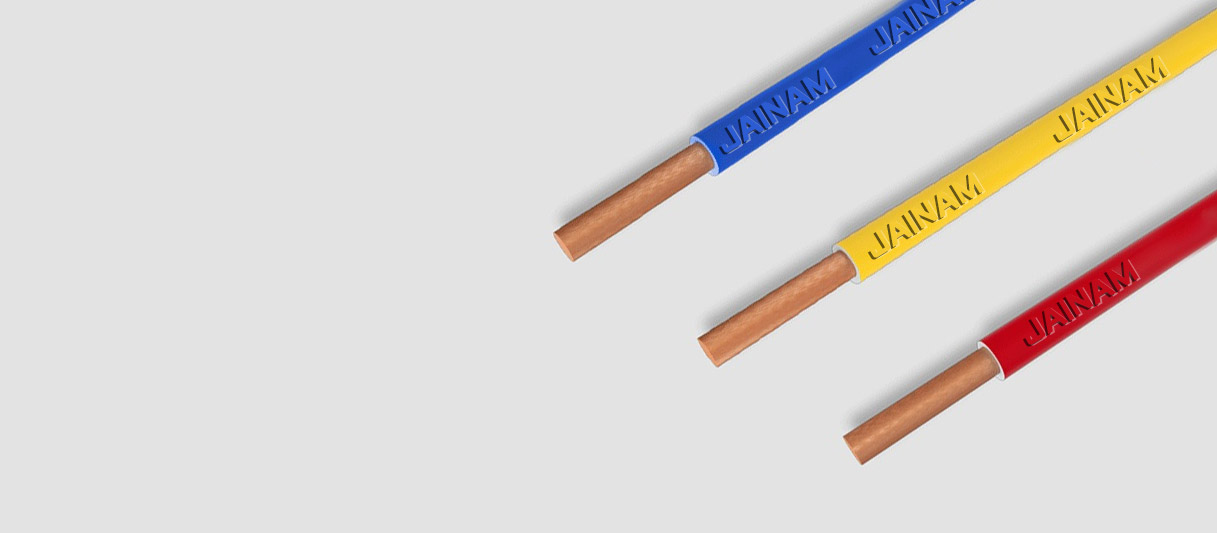

H05V-U harmonized cable features single-core PVC insulated solid copper conductors designed for reliable fixed indoor electrical wiring. Its robust construction delivers excellent mechanical strength, electrical performance and easy installation in conduit and cable trays. Well-suited for house wiring, switchgear and light electrical applications under European harmonized specifications.

Construction

Conductor : Solid copper conductor, class 1 DIN VDE 0281, IEC 60228

Insulation : PVC insulation compound TI-1

Core Colours : Green/Yellow, Blue, Black, Brown, Grey, Orange, Pink, Red, Violet, White, Green, Yellow or other colours

Flame propagation : Flame Retardant Test as Per IEC 60332-1

Technical Data

Operating Temp : -20°C to max.+80°C

Nominal Voltage : H05V-U : 300/500V | H07V-U : 450/750V

Test Voltage : H05V-U : 2000V | H07V-U : 2500V

Insulation resistance : Min. 10 MΩ × km

Min. bending radius : 4 × Cable Diameter

Applications

H05V-U, H07V-U
- Fixed Installation In Conduits And Under Plaster, For Appliance Wiring And Distribution Stations

 Standard length cable packing:
- Coils 100 and 200 m in Carton Boxes, Reels

Cable Features

Good Application Of Insulation

High Current Carrying Capacitys
Excellent Resistant To Moisture, Abrasion, Grace, Oil
Excellent Mechanical & Electrical Properties
Harmonized Acc. To European Standards
Steam And Boiling Water Resistant
Tested By Sgs, Eil, Rites, Npc, Intertek

H05V-U (300/500 V)

Size in
mm		Nos./ dia.
(Nom.)		Insulation Thickness
in mm (nom.)		Outer Dia
in mm (Appx.)		Max. C.R in
ohm/km Copper
0.51/0.800.602.1036.00
0.751/0.970.602.2024.50
11/1.130.602.6018.10

H07V-U (450/750 V)

Size in
mm		Nos./ dia.
(Nom.)		Insulation Thickness
in mm (nom.)		Outer Dia
in mm (Appx.)		Max. C.R in
ohm/km Copper
1.51/1.380.703.0012.10
2.51/1.780.803.607.41
41/2.240.804.104.61
61/2.780.804.703.08
101/3.571.005.801.83
