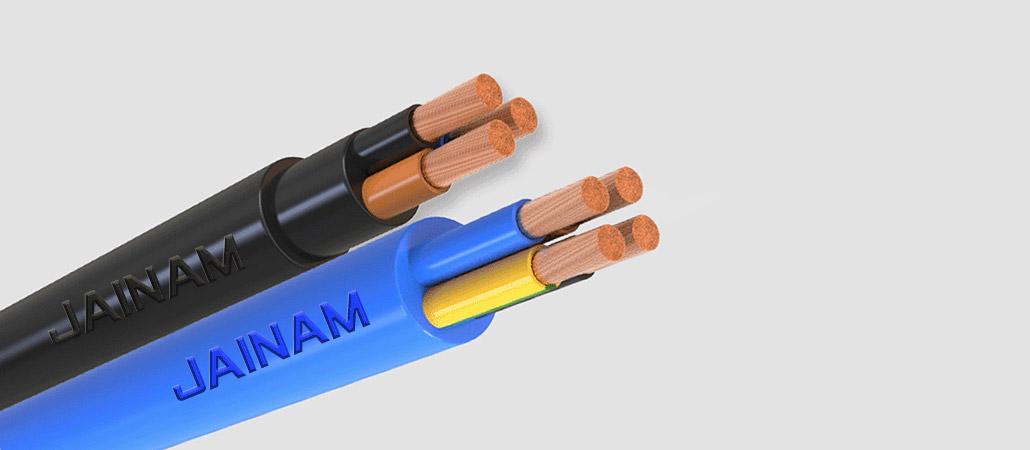

H07RN-F


H07RN-F

Heavy-duty H07RN-F harmonized cable built with robust rubber insulation and flexible copper conductors for demanding industrial and outdoor applications. Its excellent resistance to oil, water, abrasion and weathering makes it ideal for portable power supplies, construction sites, pumps, generators and mobile equipment. Designed under European harmonized standards for superior flexibility and durability.

One Core

Sq. mmNos./ dia. (Nom.)Insulation Thickness
in mm (nom.)		Core dia.
in mm		Sheath Thickness
in mm (nom.)		Cable dia.
in mm (Nom.)		Max. C.R in
ohm/km Copper
1C X 1.522/0.3000.803.251.406.2012.10
1C X 2.536/0.3000.803.801.406.707.41
1C X 456/0.3000.904.501.507.504.95
1C X 684/0.3001.005.251.608.603.30
1C X 10140/0.3001.007.001.8010.801.91
1C X 16224/0.3001.208.151.9012.201.21
1C X 25350/0.3001.209.952.0014.200.780
1C X 35490/0.3001.4011.102.2015.700.554
1C X 50703/0.3001.4013.302.4018.300.386
1C X 70988/0.3001.6015.152.6020.600.272
1C X 951349/0.3001.6017.552.8023.400.206
1C X 120608/0.5001.8019.453.0025.700.161
1C X 150760/0.5002.0021.303.2027.900.129
1C X 185943/0.5002.2023.903.4030.800.106
1C X 2401225/0.5002.4027.103.5034.100.0801
1C X 3001498/0.5002.6029.603.6036.800.0641
1C X 4002023/0.5002.8033.803.8041.600.0486

Two Core

Sq. mmNos./ dia. (Nom.)Insulation Thickness
in mm (nom.)		Core dia.
in mm		Sheath Thickness
in mm (nom.)		Cable dia.
in mm (Nom.)		Max. C.R in
ohm/km Copper
2C X 114/0.3000.803.001.308.7018.10
2C X 1.522/0.3000.803.251.509.5012.10
2C X 2.536/0.3000.903.801.7011.107.41
2C X 456/0.3001.004.501.8012.904.95
2C X 684/0.3001.005.252.0014.703.30
2C X 10140/0.3001.206.503.1019.401.91
2C X 16224/0.3001.208.003.3022.701.21
2C X 25350/0.3001.4010.103.6027.500.780

Three Core

Sq. mmNos./ dia. (Nom.)Insulation Thickness
in mm (nom.)		Core dia.
in mm		Sheath Thickness
in mm (nom.)		Cable dia.
in mm (Nom.)		Max. C.R in
ohm/km Copper
3C X 114/0.3000.803.001.409.4518.10
3C X 1.522/0.3000.803.251.6010.2012.10
3C X 2.536/0.3000.903.801.8011.907.41
3C X 456/0.3001.004.501.9013.504.95
3C X 684/0.3001.005.252.1015.603.30
3C X 10140/0.3001.206.503.3020.601.91
3C X 16224/0.3001.208.003.5024.201.21
3C X 25350/0.3001.4010.103.8029.100.780
3C X 35490/0.3001.4011.304.1032.100.554
3C X 50703/0.3001.6013.304.5038.100.386
3C X 70988/0.3001.6015.304.8042.300.272
3C X 951349/0.3001.8018.005.3049.100.206
3C X 120608/0.5002.0019.805.9054.600.161
3C X 150760/0.5002.2022.006.0059.500.129
3C X 185943/0.5002.4023.706.5064.300.106

Four Core

Sq. mmNos./ dia. (Nom.)Insulation Thickness
in mm (nom.)		Core dia.
in mm		Sheath Thickness
in mm (nom.)		Cable dia.
in mm (Nom.)		Max. C.R in
ohm/km Copper
4C X 114/0.3000.803.001.5010.718.10
4C X 1.522/0.3000.803.251.7011.212.10
4C X 2.536/0.3000.903.801.9013.007.41
4C X 456/0.3001.004.502.0014.94.95
4C X 684/0.3001.005.252.3017.53.30
4C X 10140/0.3001.206.503.4022.61.91
4C X 16224/0.3001.208.003.6027.11.21
4C X 25350/0.3001.4010.104.1032.70.780
4C X 35490/0.3001.4011.304.4036.20.554
4C X 50703/0.3001.6013.304.8042.30.386
4C X 70988/0.3001.6015.305.2048.20.272
4C X 951349/0.3001.8018.005.9055.60.206
4C X 120608/0.5002.0019.806.0061.20.161
4C X 150760/0.5002.2022.006.5066.00.129
4C X 185943/0.5002.4023.706.9071.5




Five Core

Sq. mmNos./ dia. (Nom.)Insulation Thickness
in mm (nom.)		Core dia.
in mm		Sheath Thickness
in mm (nom.)		Cable dia.
in mm (Nom.)		Max. C.R in
ohm/km Copper
5C X 114/0.3000.803.001.6011.5018.10
5C X 1.522/0.3000.803.251.8012.6012.10
5C X 2.536/0.3000.903.802.0014.507.41
5C X 456/0.3001.004.502.2016.804.95
5C X 684/0.3001.005.252.5019.403.30
5C X 10140/0.3001.206.503.6025.101.91
5C X 16224/0.3001.208.003.9029.701.21
5C X 25350/0.3001.4010.104.4036.400.780
5C X 35490/0.3001.4011.304.6040.000.554
Note

The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360 Or UL83
