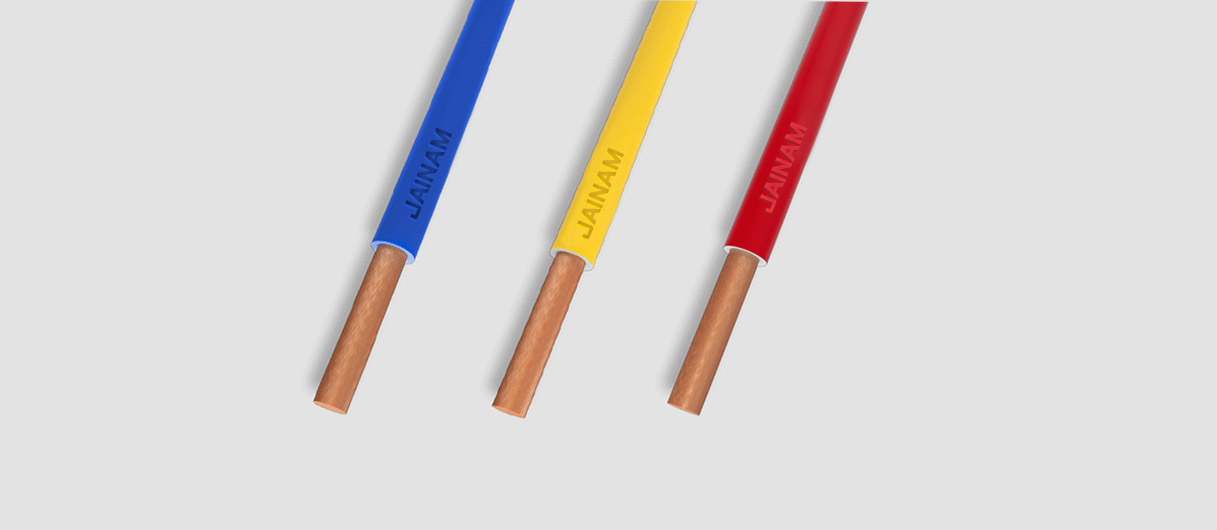

HH05V2-U, HH07V2-U


HH05V2-U, HH07V2-U

H05V2-U harmonized cable provides rigid single-core copper conductors with high-temperature resistant PVC insulation, making it suitable for fixed indoor wiring in appliances and surface or embedded conduit installations. Its robust design ensures stable electrical performance, improved heat tolerance and safe operation in lighting and electrical circuits. Great choice for residential and commercial electrical wiring needs.

Construction

Conductor :Solid copper conductor, class 1 DIN VDE 0281,IEC 60228

Insulation :Heat - resistant polyvinyl chloride (PVC) insulation

Core :Green/Yellow, Blue, Black, Brown, Grey, Orange, Pink, Red, Violet, White, Green, Yellow or other colours

Flame propagation : Flame retardant test as Per IEC 60332-1

Technical Data

Operating Temp : -20°C to max.+80°C

Nominal Voltage : H05V-U : 300/500V | H07V-U : 450/750V

Test Voltage : H05V-U : 2000V | H07V-U : 2500V

Insulation resistance : Min. 10 MΩ × km

Min. bending radius : 4 × Cable Diameter

Applications

✔ H05V2-U, H07V2-U
For internal wiring of appliances as well as installation in an electrical conduit pipe either on or underneath plaster

✔ Standard length cable packing:
- Coils 100 and 200 m in Carton Boxes, Reels

Cable Features

Special heat resistant insulation

High Current Carrying Capacitys
Less heat energy radiation
Good application of insulation
Excellent resistant to moisture, abrasion, grace, oil
Excellent mechanical & electrical properties
harmonized acc. to European standards
Insulation is highly thermal stable
Tested by SGS, EIL, RITES, NPC, INTERTEK

H05V-K ( 300/500 V )

Size in
mm		Nos./ dia.
(Nom.)		Insulation Thickness
in mm (nom.)		Outer Dia
in mm (Appx.)		Max. C.R in
ohm/km Copper
0.51/0.800.602.1036.00
0.751/0.970.602.2024.50
11/1.130.602.6018.10
  • All are class 2 standred Conductor
  • Insulations Grade is TI1

H07V2-U (450/750 V)

Size in
mm²		Nos./ dia.
(Nom.)		Insulation Thickness
in mm (nom.)		Outer Dia
in mm (Appx.)		Max. C.R in
ohm/km Copper
1.51/1.380.703.0012.10
2.51/1.780.803.607.41
41/2.240.804.104.61
61/2.240.804.703.08
101/3.571.005.801.83
  • All are class 2 stranded conductor
  • Insulation Grade is TI1
Note

The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360
