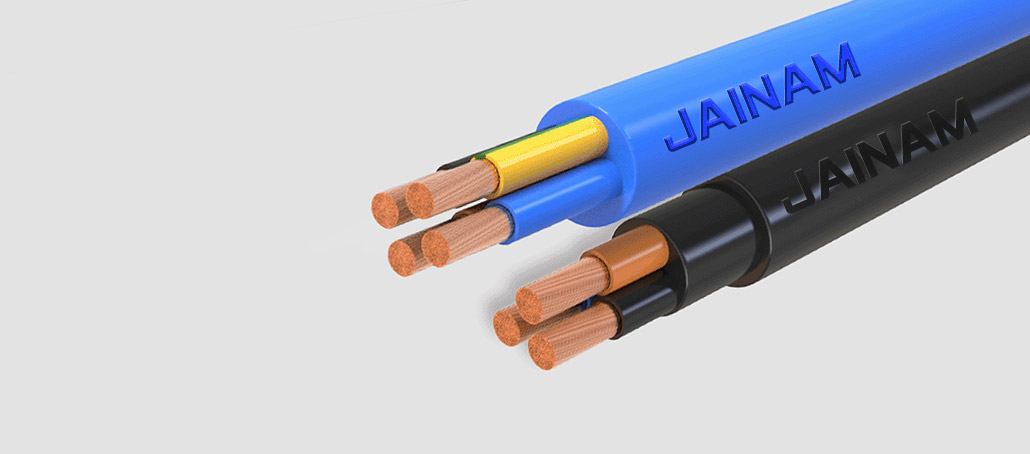

H05RN-F


H05RN-F

Heavy-duty H05RN-F harmonized cable built with robust rubber insulation and flexible copper conductors for demanding industrial and outdoor applications. Its excellent resistance to oil, water, abrasion and weathering makes it ideal for portable power supplies, construction sites, pumps, generators and mobile equipment. Designed under European harmonized standards for superior flexibility and durability.

Construction

Generally Conforms to, DIN VDE 0282 PART 810, IEC 245, BS7655,BS7919/ HD22.1, HD22.4

Conductor :Flexible Class 5 copper conductor according to DIN VDE 0295,IEC 60228

Insulation : EPDM-rubber, core identification by colours

Sheathing :Weather - and oil resistant rubber Black or Blue,
*Any other Color on specific request can also be supplied

Technical Data

Operating Temp : -25°c to max.+90°C

Nominal Voltage : 300/400V

Test Voltage : 2500V

Min. bending radius : 8 × Cable Diameter

Flame propagation : Flame retardant test as per IEC 60332-1

Applications

✔ H05RN-F
Jainam H05RN-F rubber insulated and sheathed cables are intended for flexible connection to electrical equipment. They are suitable for both indoor and outdoor use in industrial and agricultural plant and on construction sites.

✔ Standard length cable packing:
100, 200 m. in reels

Cable Features

Temperature range -30° to +90°

Designed for heavy duty use
Cur, tear & abrasion resistant
Exceptional long term performance
Excellent resistant to oils, chemicals, ozone & solvents
Excellent Weather Resistant
Performs & Looks like Vulcanize Rubber
Excellent Electrical Properties
Approved by GWSSB, GWRDC, TWAD, PHED, PSTC, ONGC
Tested by INTERTEK,SGS, EIL, RITES, NPC

Dimensions of type 60245 IEC 53

Number and nominal cross-sectional area of conductors
mm²		Thickness of insulation
Specified value
mm		Thickness of sheath
Specified value
mm		Mean overall diameter
Lower limit
mm		Mean overall diameter
Upper limit
mm
2 × 0.750.60.85.77.4
2 × 10.60.96.18.0
2 × 1.50.81.07.69.8
2 × 2.50.91.19.011.6
3 × 0.750.60.96.28.1
3 × 10.60.96.58.5
3 × 1.50.81.08.010.4
3 × 2.50.91.19.612.4
4 × 0.750.60.96.88.8
4 × 10.60.97.19.3
4 × 1.50.81.19.011.6
4 × 2.50.91.210.713.8
5 × 0.750.61.07.69.9
5 × 10.61.08.010.3
5 × 1.50.81.19.812.7
5 × 2.50.91.311.915.3

NOTE: The mean overall dimensions have been calculated in accordance with IEC 60719.

Note

The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360 Or UL83
