CO2 Torch Welding Cable

Jainam CO₂ MIG Welding Torch Cables are specially designed for continuous, high-performance MIG/CO₂ welding applications where flexibility, durability, and stable current flow are essential. These cables combine a highly flexible copper power core with integrated control cores, making them ideal for modern welding torch assemblies. The cable is insulated and sheathed with NBR (Nitrile Butadiene Rubber), ensuring excellent resistance to heat, oil, abrasion, welding sparks, and harsh industrial environments. Designed for voltage ratings up to 1100 V, these cables meet the demanding requirements of heavy-duty fabrication and automated welding systems.

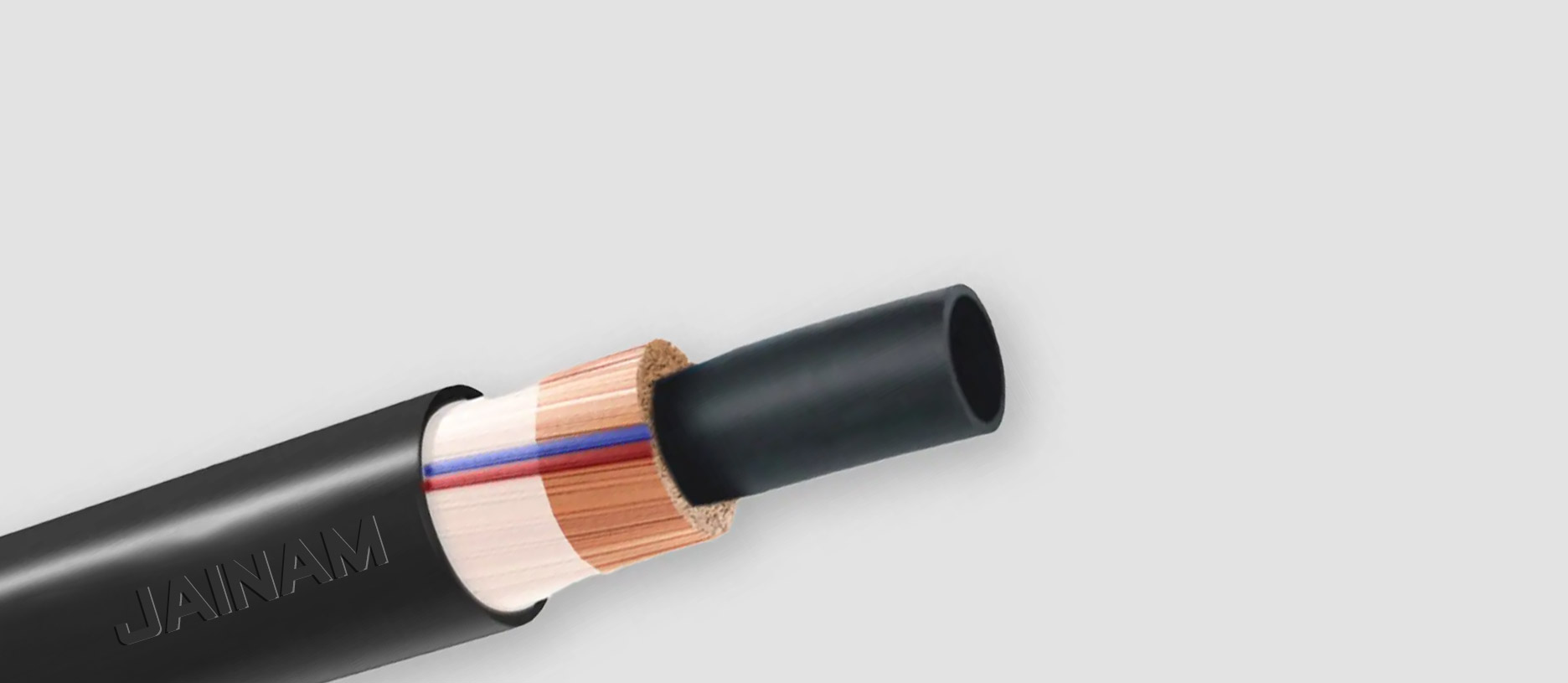

Construction

  • Power Conductor: Extra flexible electrolytic copper
  • Control Cores: 2 core copper control cable
  • Insulation: Paper taped & NBR insulated
  • Outer Sheath: NBR Rubber
  • Voltage Grade: Up to 1100 V
  • Flexibility Class: Suitable for continuous bending
  • Operating Temperature: Up to 85°C (continuous)
  • Standard: As per applicable IS specifications

Application

Jainam CO₂ MIG Welding Torch Cables are widely used in:

  • MIG / CO₂ welding torch assemblies
  • Semi-automatic and automatic welding machines
  • Fabrication shops and manufacturing units
  • Automotive and heavy engineering industries
  • Robotic and continuous welding applications
  • Shipbuilding and structural steel fabrication

Special Features

High-Conductivity Flexible Copper Conductor

Integrated 2-Core Control Cable for Torch Operations
NBR Rubber Sheathing for Superior Protection
Excellent Flexibility for Continuous Torch Movement
Resistant to Heat, Oil, Flame, Abrasion & Welding Spatter
Stable Performance at High Duty Cycles
Suitable for MIG / CO₂ Welding Machines

Advantages of Jainam CO₂ Torch Welding Cables

  • Smooth torch movement due to high flexibility
  • Reduced downtime and longer service life
  • Stable arc performance during continuous welding
  • Excellent resistance to industrial wear and tear
  • Reliable signal transmission through control cores

Why Choose Jainam CO₂ Welding Torch Cables?

Jainam cables are manufactured with precision engineering, stringent quality control, and industry-tested materials, ensuring reliable performance in demanding welding environments. Our CO₂ torch cables are trusted by professionals for their durability, flexibility, and consistent electrical performance.

Note

The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360

In view of continuous improvements in our design and process, specifications given here in are subject change without notice.

  • All are flexible Conductor
  • Insulation Material is NBR
