Construction

generally conforms to IS 1554-1, IEC 60502-1, BS 6346

Conductor : Material - Copper According to VDE 0295 class 1 or 2 (IEC 60228,IS 8130)

Insulation : PVC Type A as per IS:5831

Inner Sheath : PVC

Armouring : Single layer of GS round wire or Flat Strips

Outer Sheath : PVC TYPE ST-1 OF IS : 5831

Technical Data

Operating Temp : -20°C to max.+90°C

Nominal Voltage :1100 V

Test Voltage : 3000 V

Insulation resistance :Min. 10 MΩ x km

Min. bending radius :Single Core : 15X Overall diameter Multi Core : 12X Overall diameter

Flame propagation :Flame retardant test as per IEC 60332-1

Application

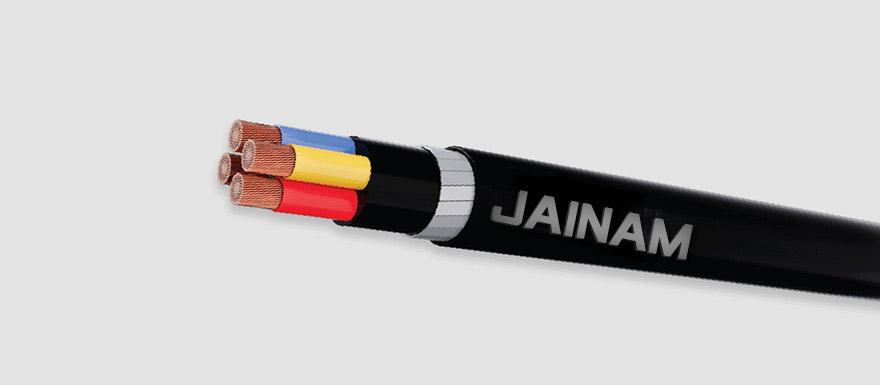

PVC Armoured Cables
Power cables for energy supply are installed outdoors, in underground, in water, indoors, in cable ducts, power stations, for industry and distribution boards as well as in subscriber networks, where mechanical damages are no

Standard length cable packing
Coils 100, 200, 300, 500, 1000 m. in wooden reels

Color Coding: AS IS 1554 ( Indian Standard )

Single Core	2 Core	3 Core	4 Core	5 Core
Red or Black	Red, Black	Red, Yellow, Blue	Red, Yellow, Blue, Black	Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

Single Core	2 Core	3 Core	4 Core	5 Core
Black or Yellow/Green	Blue and Brown or Yellow-Green, and Black	Blue, Brown, Black, Grey, or Yellow/Green, Blue, Brown	Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey	Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey

Technical DataTable

Jainam 1.1 kV 3 CORE COPPER CONDUCTOR PVC INSULATED, INNER SHEATHED ARMOURED PVC SHEATHED CABLES (IS : 1554 PART 1)
SIZE (MM²)	INSULATION PVC THICKNESS IN MM (NOM.)		INNER SHEATH PVC THICKNESS IN MM (MIN.)	ARMOUR SIZE IN MM (G.I)		OUTER SHEATH PVC THICKNESS IN MM (MIN.)	APPROX OUTER SHEATH O/D IN MM	APPROX WEIGHT OF CABLE (KGS/KM)	MAX.DC CONDUCTOR RESISTANCE at 20°C (Ohm/Km)	Current Ratings (Amp.)
SIZE (MM²)	MAIN CORE	HALF CORE	INNER SHEATH PVC THICKNESS IN MM (MIN.)	W	H	OUTER SHEATH PVC THICKNESS IN MM (MIN.)	APPROX OUTER SHEATH O/D IN MM	APPROX WEIGHT OF CABLE (KGS/KM)	MAX.DC CONDUCTOR RESISTANCE at 20°C (Ohm/Km)	Direct In Ground	In Air
3.5C X 25	0.90	0.70	0.30	4.0	0.80	1.40	22.70	1424	0.727	120	125
3.5C X 35	0.90	0.70	0.30	4.0	0.80	1.40	24.50	1748	0.524	145	155
3.5C X 50	1.00	0.90	0.30	4.0	0.80	1.56	28.50	2391	0.387	170	190
3.5C X 70	1.10	0.90	0.40	4.0	0.80	1.50	32.15	3108	0.268	210	235
3.5C X 95	1.10	1.00	0.40	4.0	0.80	1.56	36.10	4082	0.193	250	290
3.5C X 120	1.20	1.10	0.50	4.0	0.80	1.72	40.50	5135	0.153	285	330
3.5C X 150	1.40	1.10	0.50	4.0	0.80	1.88	44.10	6137	0.124	315	375
3.5C X 185	1.60	1.10	0.60	4.0	0.80	2.04	49.15	7542	0.0991	355	435
3.5C X 240	1.70	1.20	0.70	4.0	0.80	2.20	54.60	9433	0.0754	410	510
3.5C X 300	1.80	1.40	0.80	4.0	0.80	2.36	60.40	11567	0.0601	460	590
3.5C X 400	2.00	1.60	0.80	4.0	0.80	2.52	68.10	14983	0.0470	520	670
3.5C X 500	2.20	1.70	1.00	4.0	0.80	2.84	76.10	18699	0.0366	580	750

Technical Data Table

Jainam 1.1 kV 3 CORE COPPER CONDUCTOR PVC INSULATED, INNER SHEATHED ARMOURED PVC SHEATHED CABLES (IS : 1554 PART 1) CABLE CODE : YWY/FY
SIZE (MM2)	INSULATION PVC THICKNESS IN MM (NOM.)	INNER SHEATH PVC THICKNESS IN MM (MIN.)	ARMOUR SIZE IN MM (G.I)		OUTER SHEATH PVC THICKNESS IN MM (MIN.)	APPROX OUTER SHEATH O/D IN MM	APPROX WEIGHT OF CABLE (KGS./KM)	MAX.DC CONDUCTOR RESISTANCE at 20°C (Ohm/Km)	Current Ratings (Amp.)
SIZE (MM2)	INSULATION PVC THICKNESS IN MM (NOM.)	INNER SHEATH PVC THICKNESS IN MM (MIN.)	W	H	OUTER SHEATH PVC THICKNESS IN MM (MIN.)	APPROX OUTER SHEATH O/D IN MM	APPROX WEIGHT OF CABLE (KGS./KM)	MAX.DC CONDUCTOR RESISTANCE at 20°C (Ohm/Km)	Direct In Ground	In Air
3C X 1.5	0.80	0.30	1.40	-	1.24	13.20	377	12.10	21	17
3C X 2.5	0.90	0.30	1.40	-	1.24	14.40	454	7.41	27	24
3C X 4	1.00	0.30	1.40	-	1.24	16.50	603	4.61	36	30
3C X 6	1.00	0.30	1.40	-	1.40	17.90	720	3.08	45	39
3C X 10	1.00	0.30	4.0	0.80	1.40	18.85	828	1.83	60	52
3C X 16	1.00	0.30	4.0	0.80	1.40	21.00	1092	1.15	77	66
3C X 25	1.20	0.30	4.0	0.80	1.40	21.60	1270	0.727	99	90
3C X 35	1.20	0.30	4.0	0.80	1.40	23.50	1602	0.524	120	110
3C X 50	1.40	0.30	4.0	0.80	1.40	26.85	2141	0.387	145	135
3C X 70	1.40	0.40	4.0	0.80	1.56	29.95	2762	0.268	175	165
3C X 95	1.60	0.40	4.0	0.80	1.56	33.90	3636	0.193	210	200
3C X 120	1.60	0.40	4.0	0.80	1.56	36.55	4438	0.153	240	230
3C X 150	1.80	0.50	4.0	0.80	1.72	40.60	5448	0.124	270	265
3C X 185	2.00	0.50	4.0	0.80	1.88	44.50	6555	0.0991	300	305
3C X 240	2.20	0.60	4.0	0.80	2.04	49.60	8220	0.0754	345	355
3C X 300	2.40	0.60	4.0	0.80	2.20	54.70	10112	0.0601	385	400
3C X 400	2.60	0.70	4.0	0.80	2.36	61.60	13208	0.0470	425	455

Technical Data Table

Jainam 1.1 kV 4 CORE COPPER CONDUCTOR PVC INSULATED, INNER SHEATHED ARMOURED PVC SHEATHED CABLES (IS : 1554 PART 1) CABLE CODE : YWY/FY
SIZE (MM2)	INSULATION PVC THICKNESS IN MM (NOM.)	INNER SHEATH PVC THICKNESS IN MM (MIN.)	ARMOUR SIZE IN MM (G.I)		OUTER SHEATH PVC THICKNESS IN MM (MIN.)	APPROX OUTER SHEATH O/D IN MM	APPROX WEIGHT OF CABLE (KGS./KM)	MAX.DC CONDUCTOR RESISTANCE at 20°C (Ohm/Km)	Current Ratings (Amp.)
SIZE (MM2)	INSULATION PVC THICKNESS IN MM (NOM.)	INNER SHEATH PVC THICKNESS IN MM (MIN.)	W	H	OUTER SHEATH PVC THICKNESS IN MM (MIN.)	APPROX OUTER SHEATH O/D IN MM	APPROX WEIGHT OF CABLE (KGS./KM)	MAX.DC CONDUCTOR RESISTANCE at 20°C (Ohm/Km)	Direct In Ground	In Air
4C X 1.5	0.80	0.30	1.40	-	1.24	14.10	446	12.10	21	17
4C X 2.5	0.90	0.30	1.40	-	1.24	15.40	544	7.41	27	24
4C X 4	1.00	0.30	1.40	-	1.40	18.15	750	4.61	36	30
4C X 6	1.00	0.30	1.40	-	1.40	18.20	778	3.08	45	39
4C X 10	1.00	0.30	4.0	0.80	1.40	20.55	1041	1.83	60	52
4C X 16	1.00	0.30	4.0	0.80	1.40	23.20	1398	1.15	77	66
4C X 25	1.20	0.30	4.0	0.80	1.40	25.65	1690	0.727	99	90
4C X 35	1.20	0.30	4.0	0.80	1.56	28.55	2168	0.524	120	110
4C X 50	1.40	0.40	4.0	0.80	1.56	32.70	2904	0.387	145	135
4C X 70	1.40	0.40	4.0	0.80	1.56	36.15	3698	0.268	175	165
4C X 95	1.60	0.40	4.0	0.80	1.72	41.45	4913	0.193	210	200
4C X 120	1.60	0.50	4.0	0.80	1.88	45.20	6030	0.153	240	230
4C X 150	1.80	0.50	4.0	0.80	2.04	49.95	7370	0.124	270	265
4C X 185	2.00	0.60	4.0	0.80	2.20	55.10	8916	0.0991	300	305
4C X 240	2.20	0.60	4.0	0.80	2.36	61.20	11137	0.0754	345	355
4C X 300	2.40	0.70	4.0	0.80	2.52	67.70	13715	0.0601	385	400
4C X 400	2.60	0.70	4.0	0.80	2.84	76.75	17961	0.0470	425	455
